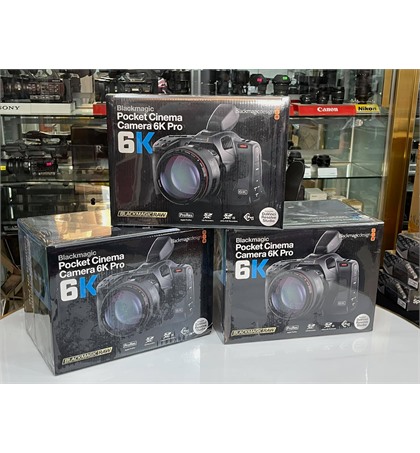

BlackmagicDisign 6K Pro
Camera Features
Effective Sensor Size: 23.10mm x 12.99mm (Super 35)
Lens Mount: Active EF mount.
Lens Control: Iris, focus and zoom on supported lenses.
Dynamic Range: 13 Stops.
Dual Native ISO: 400 and 3200
Shooting Resolutions:
6144 x 3456 (6K) up to 50 fps
6144 x 2560 (6K 2.4:1) up to 60 fps
5744 x 3024 (5.7K 17:9) up to 60 fps
4096 x 2160 (4K DCI) up to 60 fps
3840 x 2160 (Ultra HD) up to 60 fps
3728 x 3104 (3.7K 6:5 anamorphic) up to 60 fps
2868 x 1512 (2.8K 17:9) up to 120 fps
1920 x 1080 (HD) up to 120 fps
Frame Rates:
Maximum sensor frame rate dependent on resolution and codec selected. Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported.
Off-speed frame rates up to 60 fps in 6K 2.4:1, 120 fps in 2.8K 17:9 and 1080HD.
Built in ND Filters:
Four position ND filter with clear, 2-stop, 4-stop and 6-stop IR ND filters.
Focus: Auto focus available using compatible lenses.
Iris Control:
Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings on compatible lenses.
Screen Dimensions: 5” 1920 x 1080.
Screen Brightness: 1500nits
Screen Type: LCD capacitive touchscreen.
Metadata Support
Automatically populated lens data from electronic EF lenses. Automatic recording of camera settings and slate data such as project, scene number, take and special notes. A 3D LUT can also be embedded in metadata of Blackmagic RAW files.
Controls:
Touchscreen menus on 5 inch screen. 1 x Power Switch, 1 x Record Button, 1 x Stills Button, 1 x Scroll Wheel with push integrated into handgrip, 1 x ISO Button, 1 x White Balance, 1 x Shutter Button, 3 x software configurable Fn buttons, 2 x ND filter button, 1 x Focus Button, 1 x IRIS Button, 1 x High Frame Rate (HFR) Button, 1 x Zoom Button, 1 x Menu Button and 1 x Playback Button.
Timecode Clock:
Highly accurate timecode clock. Less than 1 frame drift every 8 hours.
Connections:
- Total Video Inputs: None
- Total Video Outputs:1 x HDMI up to 1080p60
- Analog Audio Inputs: 2 x mini XLR analog switchable between mic with phantom power support and line level (up to +14dBu). 1 x 3.5mm Stereo Input. Can also be used for Timecode input.
- Analog Audio Outputs: 1 x 3.5mm headphone jack.
- Computer Interface: USB Type-C for external drive recording, PTP camera control and software updates.
Audio:
- Microphone: Integrated stereo microphone.
- Built in Speaker: 1 x mono speaker.
Standards
SD Video Standards
None
HD Video Standards
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
4K DCI Standards
4KDCIp23.98, 4KDCIp24, 4KDCIp25, 4KDCIp29.97, 4KDCIp30, 4KDCIp50, 4KDCIp59.94, 4KDCIp60
Media- Media:
1 x CFast card slot, 1 x SD UHS-II card slot, 1 x USB-C 3.1 Gen 1 expansion port for external media for Blackmagic RAW and ProRes Recording.
- Media Format: Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.
Software- Software Included:
Blackmagic OS
DaVinci Resolve Studio for Mac and Windows including activation key
Blackmagic Camera Setup
Blackmagic RAW Player
Blackmagic RAW QuickLook Plugin
Blackmagic RAW SDK
Blackmagic RAW Speed Test
Operating Systems- Mac 10.15 Catalina,
- Mac 11.1 Big Sur or later.
- Windows 10.
Power Requirements- Power Supply: 1 x External 12V power supply.
- External Power Input: 1 x 2-pin locking connector.
- Battery Type: NP-F570
- Battery Life: Approximately 60 minutes (recording 6K RAW at 24 fps to CFast 2.0 with screen brightness at 50%)
- Power: 12V-20V.
Call: 011 92 77 66/ 011 66 52 21/ 070 28 54 10
*Inbox, Call or email for check stock & price
